Check out some of our awesome products.

Developed and distributed by Nuclear Instruments

Filter:

Sci-Compiler compatible
digitizer

DAQ121

32 Channels, 1 Gsps, 12-bit simultaneous sampling digitizer.
Sci-Compiler compatible
digitizer

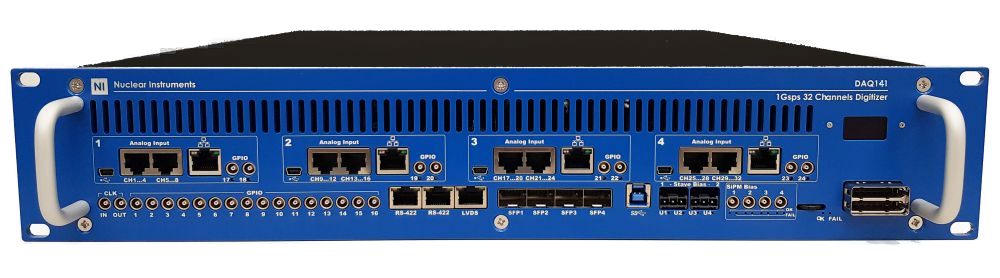

DAQ141

32 Channels, 1 Gsps, 14-bit simultaneous sampling digitizer.
Sci-Compiler compatible
digitizer

DAQ141-6

6 Channels, 1 Gsps, 14-bit simultaneous sampling waveform digitizer — and the real-time processing core of the upcoming QuantumBox single-photon system.
quantum

QuantumBox

A fully digital photon-number-resolving readout chain for SiPM-based quantum optics — DAQ141 digitizer + QMPD-2 detector heads + QUANTA software. Counts the exact number of photons in every pulse, in real time.
detector

QMPD-2

Quantum Multi Photon Detector — a fiber-coupled, room-temperature SiPM detector head for true photon-number resolution, powered by DAQ141-6 or the optional QMPD-1 bias unit.
power-supply

QMPD-1

QMPD-1 Bias & Control Unit — programmable SiPM power supply and controller for the QMPD-2 detector head, with USB/UART/I²C control and ZEUS 2 software.
Sci-Compiler compatible
digitizer

DAQ14125

14-bit, 125 MS/s, 8-Channel Digitizer
software

QUANTA

Quantum Photon Counter & Timer software — real-time photon counting with quantum correlations and picosecond photon timing, on the Nuclear Instruments digitizer platform.

Developed by our team in collaboration with Caen

Filter:

Sci-Compiler compatible
digitizer

DT5571

Single-channel 14-bit 200 MS/s Open FPGA desktop waveform digitizer with Scope and DPP modes, programmable with Sci-Compiler.
power-supply

DT5490

Desktop single-channel 85 V / 10 mA digitally-controlled high-voltage power supply for SiPM biasing, with temperature compensation and USB/Ethernet control.
power-supply

A7590D

Single-channel, floating 80 V / 50 mA digitally-controlled high-voltage power supply for SiPM biasing, with temperature compensation and high-resolution monitoring.
Sci-Compiler compatible
logic-unit

V2495

VME 6U programmable logic unit with user-customizable FPGA, expandable I/O, and support for various digital functions in experimental setups.
logic-unit

N1081B

NIM Four-Fold Programmable Logic Unit with touchscreen and web interface for logic, timing, counting, and pulse generation applications.
readout-system

FERS-5200

Modular and scalable front-end readout system for large detector arrays, featuring ASIC-based front-end cards and a concentrator board for synchronized data acquisition.
signal-generator

DT5810

Fast digital detector emulator with 1 ns rise time, dual-channel output, and advanced signal emulation capabilities for testing radiation detection systems.
signal-generator

DT5800

Dual-channel digital detector emulator with programmable pulse generation, timing control, and noise emulation for testing radiation detection systems.
digital-mca

DT5771

64k-channel Digital MCA with 14-bit 200 MS/s ADC, Ethernet and USB connectivity, and web-based GUI for high-resolution gamma spectroscopy.
signal-generator

DT4810

One-channel micro digital detector emulator with 500 MSps DAC, real-time signal emulation, and web-based GUI for testing radiation detection systems.
logic-unit

DT1081B

Desktop Four-Fold Programmable Logic Unit with touchscreen and web interface for logic, timing, counting, and pulse generation applications.
power-supply

A7585D / A7585DU

Single-channel 85 V / 10 mA high-voltage power supply module with digital and analog control, designed for SiPM biasing applications.
digital-mca

DT5770

1-channel 16k Digital MCA for high-resolution gamma spectroscopy with compact design and real-time pulse height analysis.
Sci-Compiler compatible
digitizer

DT5560SE

32-channel 14-bit 125 MS/s desktop digitizer with open FPGA architecture and programmable analog front-end for flexible data acquisition in laboratory environments.
Sci-Compiler compatible
digitizer

R5560SE

128-channel 14-bit 125 MS/s digitizer with single-ended inputs and open FPGA architecture for customizable data acquisition.
Sci-Compiler compatible
digitizer

R5560

128-channel 14-bit 125 MS/s digitizer with open FPGA and multi-detector support for large-scale experiments.
software

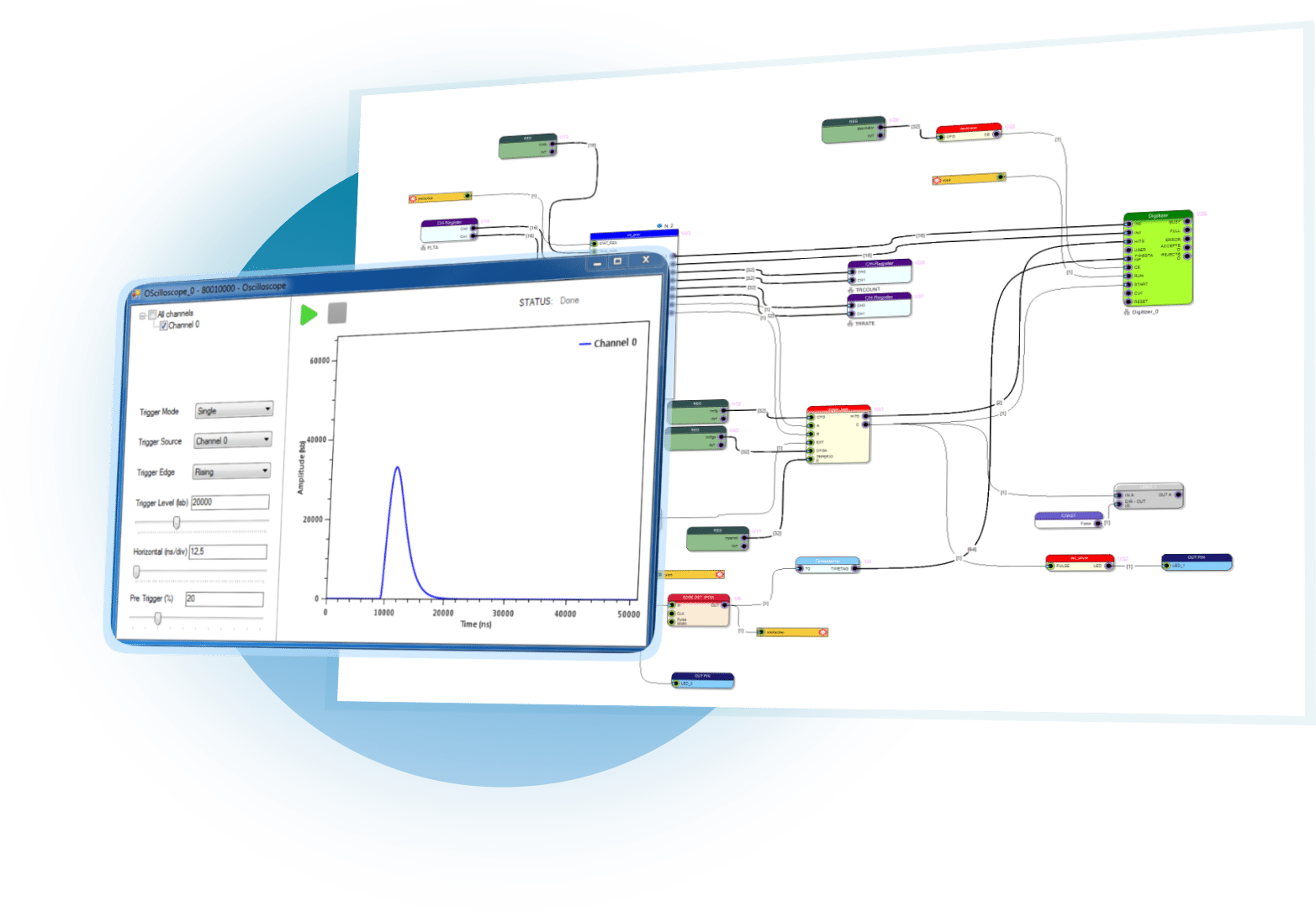

Sci-Compiler

Sci-Compiler is a visual programming tool designed for fast prototyping and deployment of scientific data acquisition and control systems. It allows users to graphically connect functional blocks and generate optimized HDL code for FPGAs, streamlining development cycles in research instrumentation, test benches, and custom electronics without deep knowledge of hardware design languages.
spectroscopy

i-Spector

PMT replacement based on a SiPM array with integrated power supply and Ethernet Remote Control
